Double clip design Stainless steel plate double clip pipe repair clamp Acid and alkali resistant corrosion-proof pipe leak sealing device Emergency

Ask Lasest Price
Brand Name :	zhicheng
Model Number :	ZCH
Price :	$12.10/sets >=10 sets

Add to Cart

Product Details
Company Profile

Double clip design Stainless steel plate double clip pipe repair clamp Acid and alkali resistant corrosion-proof pipe leak sealing device Emergency

Water Pipe Connector Plate Type Double Card Extension Pipe Repair Clamp

TUV Certified

Product Description

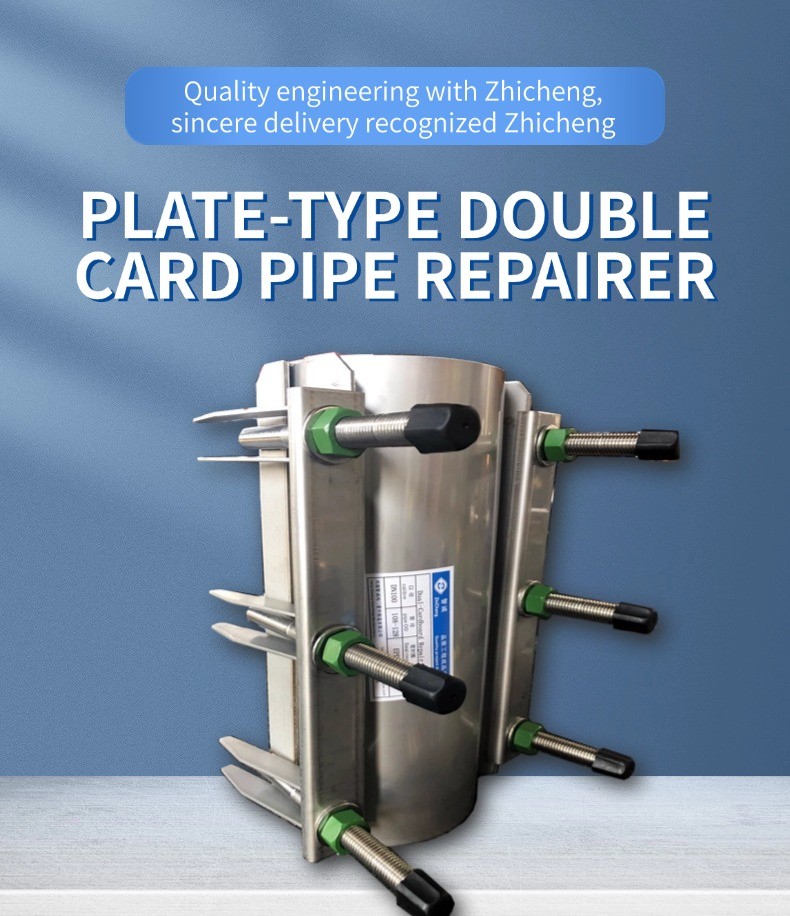

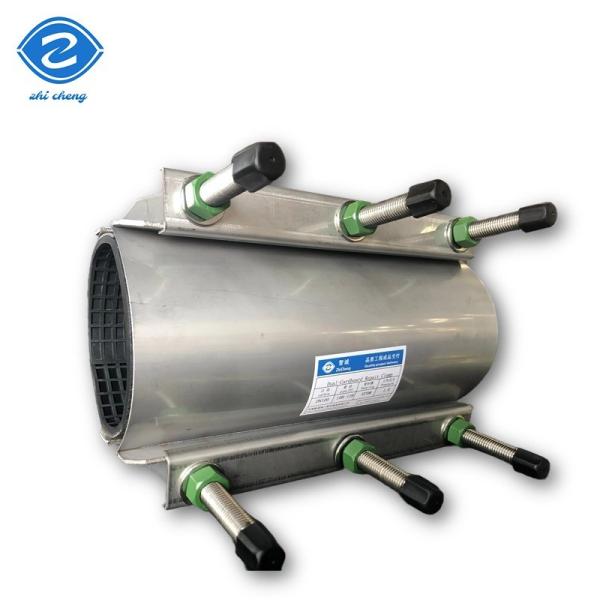

Double plate-type pipeline repair clamp

Leak Repair Clamp Pipe repair clamp is a kind of equipment for pipeline repair.

1.Strong corrosion resistance

2.No need for welding

3.No fire hazard

4.Space saving

5.Unlimited pipe material

6.Pressure sealing

7.Easy installation

Specification

Double clip design Stainless steel plate double clip pipe repair clamp Acid and alkali resistant corrosion-proof pipe leak sealing device Emergency

Details show

产品规格 Product Specification
适用管径 Applicable Pipes Diameter	工业允用压力 Allowable Pressure of Industry	长度范围 Length Range	螺栓 Bolt	扭矩 Torque
ODmin-ODmax(mm)	WP(bar)	S(MM)	M	NM
88-108	16	150-600	14	80
108-128	16	150-600	14	80
113-133	16	150-600	14	80
120-141	16	150-600	14	80
168-188	16	150-600	14	80
174-194	16	150-1200	14	80
219-239	16	150-1200	16	100
228-249	16	150-1200	16	100
238-258	16	150-1200	16	100
258-278	16	150-1200	16	100
273-293	16	150-1200	16	100
282-302	10	150-1200	16	100
29-5315	10	150-1200	16	100
324-344	10	150-1200	16	120
335-356	10	150-1200	16	120
347-367	10	150-1200	16	120
357-376	10	150-1200	16	120
365-384	10	150-1200	16	120
383-402	10	150-1200	16	120
404-423	10	150-1200	16	120
421-440	10	150-1200	16	120
436-455	10	150-1200	16	120
453-472	10	150-1200	16	120
469-488	10	150-1200	16	120
488-507	10	150-1200	16	130
505-525	10	150-1200	16	130
526-545	8	150-1200	16	130
547-566	8	150-1200	16	130
582-581	8	150-1200	16	130
582-601	8	150-1200	16	130
630-650	8	150-1200	16	130
670-690	8	150-1200	16	130
720-740	8	150-1200	16	130

Note: 1: because of too many models, the layout is limited, larger calibre and special calibre, special materials, can be customized according to customer requirements. 2: Please contact the company's after-sales personnel in a timely manner for the installation of all products and installation and use of problems encountered in the process, we will be the first time to make answers.

If you want to know more details of our products,pls click here to contact us!

Product advantages

The advantages of the clamp:
1.Operation is simple.
2.Is beneficial to the safety of construction.
3.The stability of the system is good and the maintenance is convenient.
4.the price is cheaper

Installation Instructions

Product application cases

Packing & Delivery

Plastic film wrapped and then packed into export wooden crates.

Why Choose Us

If you want to know more product details, please click here to contact us now.

FAQ

Q:Are you factory? We are a factory in manufacturing and exporting expansion joint.

Being in the lines for nearly 30 years, we can confirm that our products are of reasonable

price and good quality . Q:Why choose us? 1.Many years Industry and export experience

2.Extensive product range with good quality 3.Complete pre-sales ,after sales service team

to ensure customer's needs and preferences. Q:How about application field?

1.the surface and underground engineering,ship building/sea oil platform,water/gas supply,

power and industrial production.

2.sewage treatment and maintenance etc.Such as Crude oil line,natural gas pipelines,water

drainage pipelines, aviation/car special line,lubricating oil pipelines blunt water power line.

3.sea water/fresh water pipeline etc. Q:What's your difference from others?

1.Produce per customer requirement strictly, test and quality control.

2.Universality:Avaliable for many kinds of metal pipes, and for less misaligned and different

diameter-pipes coupling, especially for emergency quick repair.

3.Economy:Coupling despite of the pipe thickness and no need furbishing of the pipe ends,

simple handing and cost-saving. how to contact us?
