Product Description
Introduction of dismantling joint

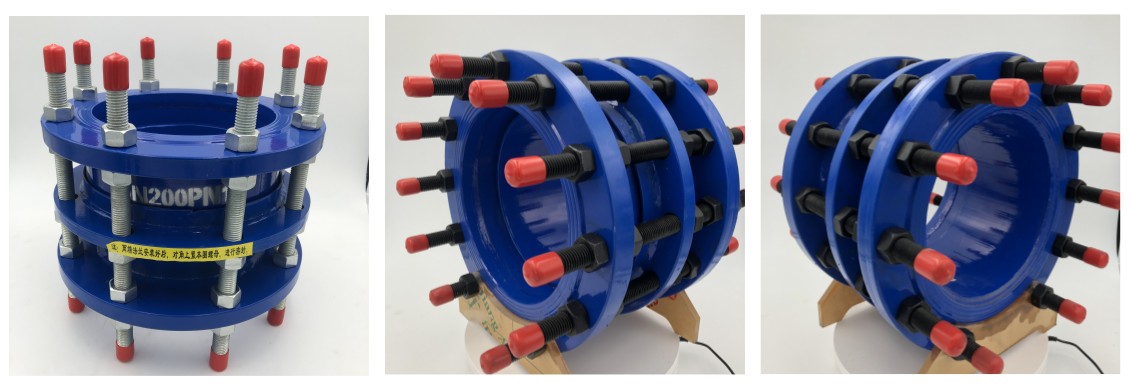

The dismantling joint consists of the main body, the sealing ring, the gland,
the telescopic short pipe and other main parts.
It is a new product that connects pumps, valves and other equipment
with pipelines. It connects them into a whole through full bolts,
and has a certain displacement. In this way, it can be adjusted
according to the installation size on site during installation and
maintenance, and the axial thrust can be transferred back to the
whole pipeline during work. This not only improves work efficiency,
but also plays a certain protective role for pumps, valves and
other equipment.
Scope of dismantling joint
Dismantling joint is suitable for transporting sea water, fresh
water, cold and hot water, drinking water, domestic sewage, crude
oil, fuel oil, lubricating oil, refined oil, air, gas, the steam
which temperature is not higher than 250°C, particle and powder
other media etc.

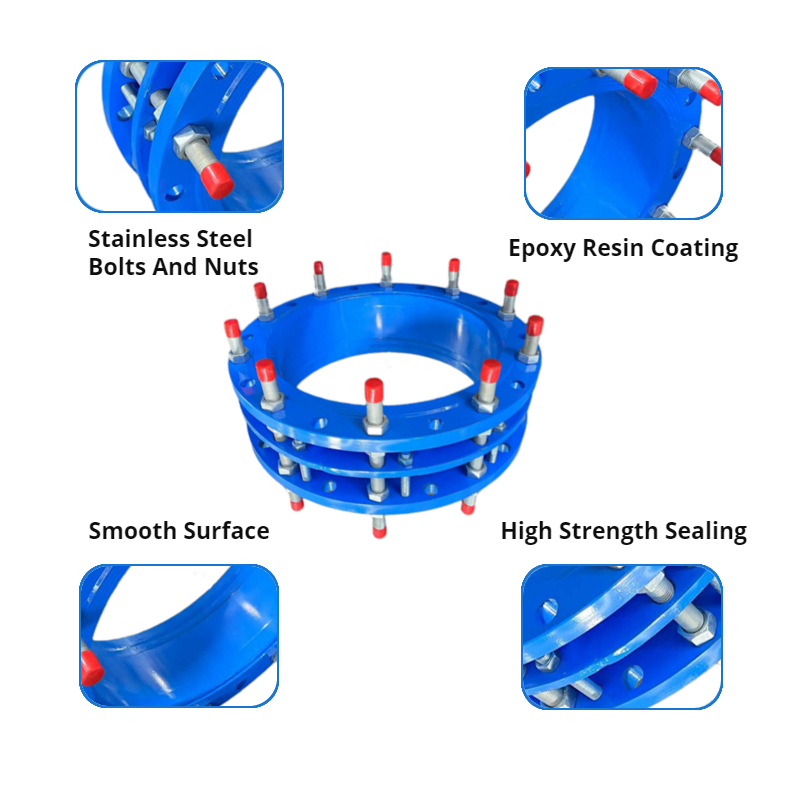

Advantages
Advantages of dismantling joint
1.Installation is simple and convenient, convenient valve
installation.
2.Rubber is strong in compression and elasticity.
3.Metal and sealing rings are highly stringent.
4.In the pipeline, it can effectively compensate and ease the pipe
and blind plate thrust.
Technicial parameter
Structure of dismantling joint
If you need more details,pls click here to contact us now!
Company Information
Henan Province Zhicheng Valve & Fittings Manufacturing Co., Ltd. is
located in Xicun Pipeline Equipment Industrial Park, Gongyi City,
Henan Province, Mainland China.
The main products of the company are: disassembled joints, steel
expanders, flexible waterproof casing, large diameter flanges,
double flange drive expanders, sleeve compensators, bellows
compensators (bellows compensators), rubber expanders, DC
thrustless compensators, flexible expansion tubes, etc. The annual
production capacity is 15,000 pieces.
Clients visit our factory for confirming order detailes of mass
production.
FAQ
Q1. What media do you want to flow through the dismantling joint ?
A1. Sea water, fresh water, cold and hot water, drinking water or
anything else.
Q2. What's the standard of the flane you want ?
A2. ANSI, ASEM, DIN, JIS, BS, or else.
Q3. What's the material of the dismantling joint you want ?
A3. Carbon steel, Stainless steel 304, 316 or else.
Q4. What's the nominal diameter, pressure and length of the
dismantling join you want ?
A4. DN200mm,1.0Mpa, length = 400mm or else.
Q5. How many pieces of dismantling joint do you need in total ?
A5. 5 pieces, 8000 pieces or else.
Q6. Do you have any special requests?
A6. production within 5 days or else.
