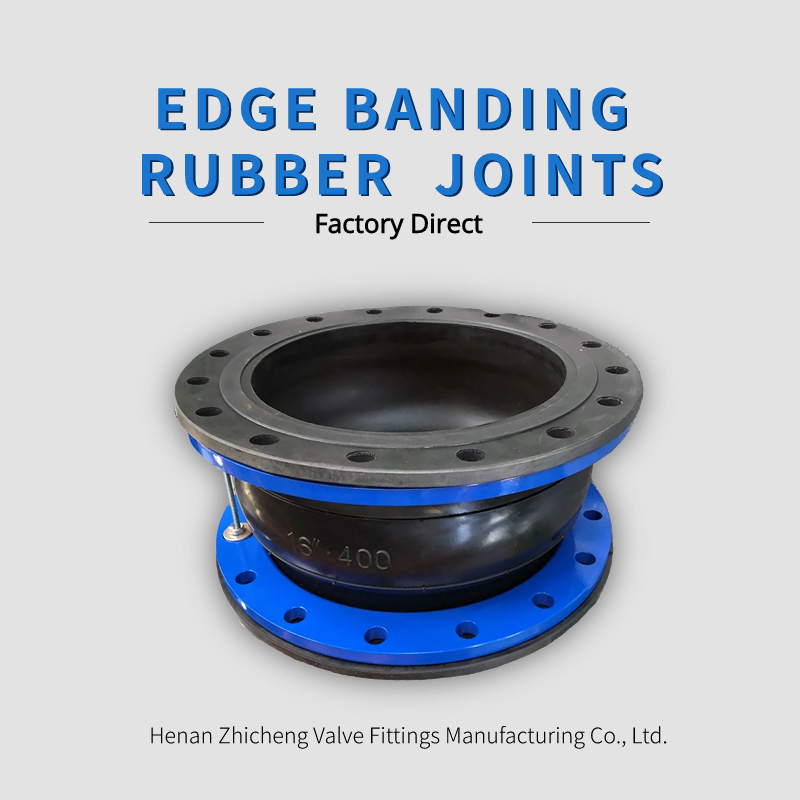

Fully End-Sealed Flanged Bellows Flexible Epdm Single Sphere
Rubber Expansion Joint
A fully sealed rubber expansion joint is a flexible connector used
in pipeline
systems, featuring excellent sealing performance and displacement
compensation
capabilities. It is widely used in applications requiring high
sealing standards.
Product Features
Fully sealed design: Utilizes a fully sealed surface structure to
ensure no leakage at
pipe connections, suitable for high-seal requirement applications.
Material advantages: Made from high-quality rubber and reinforced
fibers, offering
excellent elasticity and corrosion resistance, suitable for various
media.
Structural design: Typically consists of a rubber body and flange,
with a compact
structure that is easy to install.
Specification
|
No. | Name | Material |
1 | Outer/inner rubber | NR, NBR, EPDM, SBR, BR etc. |
2 | Size | DN25-DN3000 |
3 | Frame | Nylon card fabric |
3 | Pressurized ring | Steel wire strand |
5 | Flange | Q235 carbon steel, 304 stainless steel etc. |
Technical conditions of rubber joint |
Type | 1 | 2 | 3 |
Working pressure(Kg f/cm2) | 1.0(10) | 1.6(16) | 2.5(25) |
Explosion pressure(Kg f/cm2) | 2.0(20) | 3.0(30) | 4.5(45) |
Vacuum value(mmHg) | 2.0(20) | 86.7(650) | 100(750) |
Applicable temperature | -15℃ ~ +80 ℃ (-30℃~+150℃ special) |
Applicable media | Air,compressed air,water,sea water,hot water,oil,acid and alkali
etc |
or offering you a qucik quotation,pls tell us
1.Which kind of media do you want to flow through the rubber
expansion joint, water , oil or anything else ?
2.What's the nomial diameter of rubber expansion joint ?
3.What's the type of rubber expansion joint, equal or reducing
shape ?
4.What's the material of rubber and flange, EPDM and stainless
steel ?
5.What's the standard of flange, ANSI, DIN or anything else ?
6.What's the nominal pressure,150lb or 300lb ?
7.What's the length of rubber sphere?8.How many pieces of rubber
expansion joints do you need in total ?
Product Description
Application field
It is widely used in chemical engineering,
construction, water supply, drainage, petroleum, light and heavy
industries, refrigeration,
sanitation, water heating, fire
protection, electric power and other basic projects. According to
different materials can
be made into acid, alkali, corrosion,
oil, high temperature, radiation, wear resistance, aging and other
varieties, to adapt to a
variety of media and environment.
Packing & Delivery
Shipping:
1.FedEx/DHL/UPS/TNT for sample. Door-to-Door
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port
receiving
3.Customers specified freight forworders or negotiable shipping
methods!
Delivery Time :
a.in stock:immediately b.sample:about 3 days c.OEM/ODM:about 15
DAYS
