Oil and Gas Resistant Rubber Expansion Joint for Water Pump,

DN100 Eccentric Reducing Rubber Expansion Joint

Video description

Products Description

The rubber flexible joint, also known as a rubber flexible joint, a flexible rubber joint, or a rubber

shock absorber, is a tub rubber component mainly composed of inner and outer rubber layers,

fabric layers, and steel wire rings. It is formed by high-temperature and high-pressure vulcanization

then combined with metal flanges. It is widely used in fire protection, chemical, pump valve,

and other pipeline systems to absorb displacement generated during operation, providing resistance

and noise reduction.

NO	Name	Material	Name	Material
1	Union	Malleable iron/ss304	Outer/inner rubber	EPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,etc.
2	Outer/inner rubber	EPDM,NR,NBR,etc.	Frame	Nylon cord fabric
3	Frame	Nylon cord fabric	Flange	stainless steel,carbon steel,ductile iron.

Name	Size
Routine rubber joint	DN15~DN4000
Concentric reducer rubber joint	DN32xDN25~DN600xDN500
Eccentric reducer rubber joint	DN100xDN80~DN500xDN300

NO	Name	Material	Remarks
1	Outer/inner rubber	EPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,Sylopute.	Select different materials according to the media
2	Frame	Nylon cord fabric	the density and number of layers determine the pressure
3	Pressurized ring	Nylon cord fabric	Prevent pressure bearing deformation from being pulled off
4	Flange	stainless steel,carbon steel,ductile iron.	Choose different materials according to your requirements

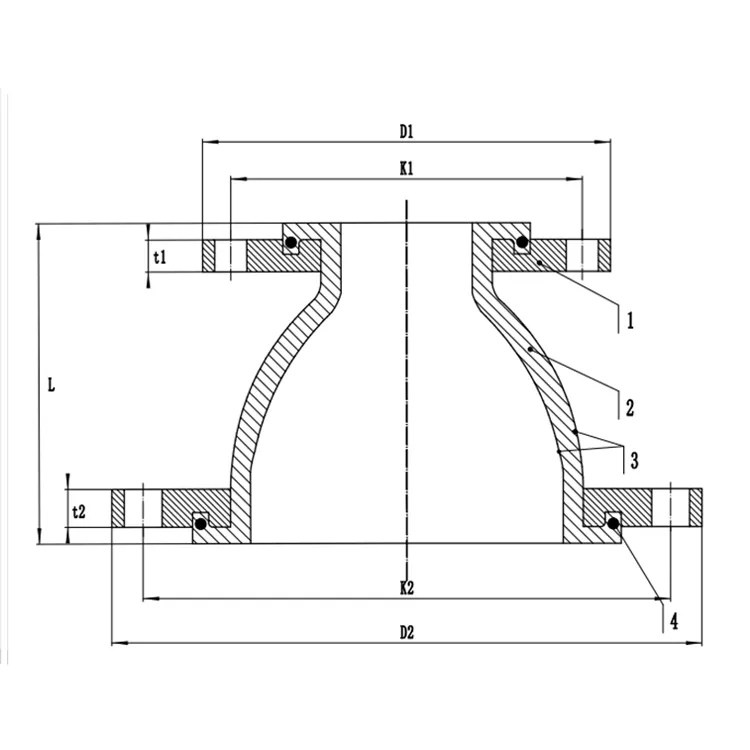

Variable diameter rubber expansion joint section view

Rubber joints can be divided into: single-ball rubber joint, double-ball rubber joint, triple-ball

rubber joint, concentric rubber joint, eccentric joint, clamp-type rubber joint, 90-degree rubber

elbow, etc., according to their external shapes.

10/2000

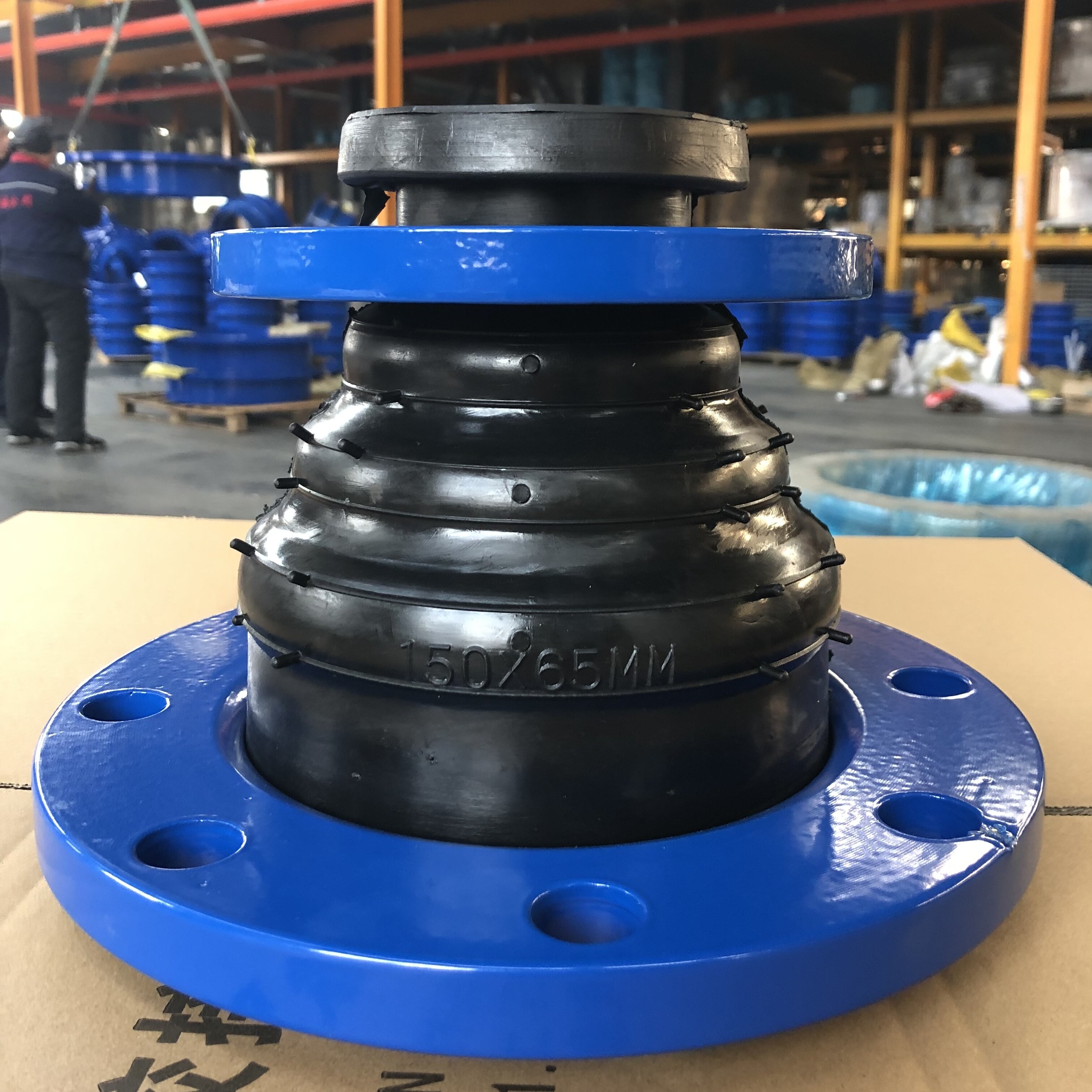

Product real shot pictures

Applications of PTFE lined rubber expansion joint:

It is more common in chemical pipeline, mainly used in strong acid-base, strong high temperature,

strong corrosion pipeline equipment, especially in corrosive medium, including: conveying pipe,

exhaust pipe, steam pipe of corrosive gas, high-pressure oil pipe of rolling mill, heat exchanger,

lining of tower and tank, valve and other chemical equipment. The following pictures is our regular

rubber joint application

Suitable medium of PTFE lined rubber expansion joint:

According to different material, acid resistance rubber joint, flameproof rubber joint, oil resistant

rubber joint, thermostatic rubber joint, low temperature resistant rubber joint, wear resistance

rubber joint can be made to suitable for various kinds of medium, and environment.

Product packaging

1. Inner package: plastic film / carton cases
2. Outer pacakge: wooden cases

Our Advantages

1. We offer good quality products in competitive price.

2. We have rich experience in this industry.

3. We have short delivery time .

4. Shipped the goods on time.

5. Meet your special requirements.

Company Profile

Henan ZhiCheng valve pipe fittings manufacturing co.LTD. founded in 1985, set design,
manufacture, processing and sales as one, in petroleum, chemical industry, metallurgy, electric

power, building, heating, water supply and other industries with high visibility,
Company has strong technical strength, complete production equipment, and scientific research

unit cooperation, adhere to the road of science and technology is popular the factory, has passed

ISO9001 international quality system certification, the existing thousands of partners, the main

products series include: flexible rubber expansion joint, bellows expansion joint, metal hose.

Company to the quality first, the credibility of sincere based on market, to the user is supreme,

harmony and win-win for the purpose of the enterprise. Unremitting efforts, energetic, for the new

and old customers to provide quality products and services.
