    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design

    Ask Lasest Price
    Brand Name : ZHICHENG
    Model Number : ZCF
    Price : $90.00/sets 1-99 sets
    • Product Details
    • Company Profile

    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design

    Product Description

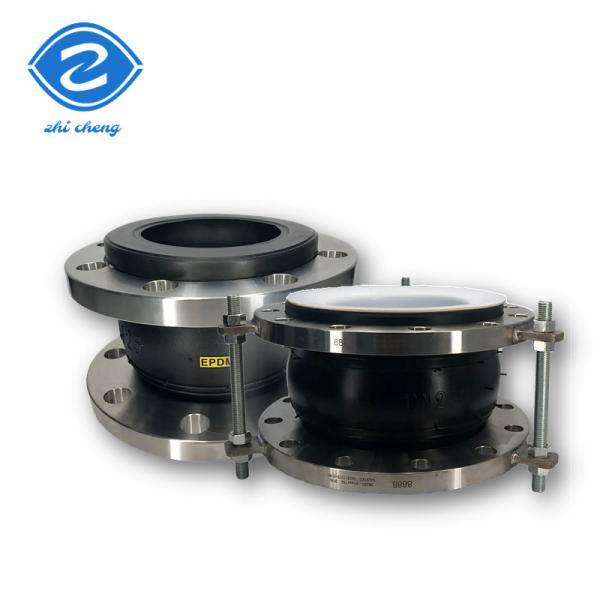

    With Limit Switch Corrosion resistant SS304 flange flexible chemical piping PTFE rubber expansion joint

    1.The rubber joint is composed of inner and outer rubber layer, nylon cord fabric and steel ring, which is vulcanized and then
    combined with metal flange or parallel joint loose sleeve. 2.The product can reduce vibration and noise, and can compensate
    thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.3.PTFE lined joint
    is based on the original conventional rubber joint, adding PTFE coating lining inside, which can effectively protect the rubber
    joint from corrosion and medium erosion. For example, strong acid, strong alkali or high-temperature oil, PTFE coating can
    effectively adhere to the inner wall of the pipeline, prevent the separation caused by medium erosion or pipeline tensile
    contraction, so that the original mechanical and physical properties of flexible rubber joint are not affected, and can still
    compensate for pipeline vibration, absorb pipeline displacement and reduce pipeline noise.

    No.NameMaterial
    1Flange
    SS304
    2Pressurized ringSteel wire strand
    3LinedPTFE
    4Outer/inner rubberNR/NBR/EPDM
    5FrameNylon cord fabric
    Model
    Working pressure(Kg f/cm²)1.0(10)
    1.6(16)
    2.5(25)
    Explosion pressure(Kg f/cm²)2.0(20)
    3.0(30)
    4.5(45)
    Vacuum(mmHg)53.3(400)53.3(400)53.3(400)
    Applicable Temperature-15℃ - +80℃ (the special can reach -30℃ - +150℃)
    Air, Water, Oil, Weak Acid and Alkali etc.

    Material of all parts

    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design

    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design

    Factory real shot display

    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design

    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design

    The above data is for reference only. If you want to know more about product details or parameters, please click here to consult us
    Features of rubber expansion joint:
    1). Small volume, light weight, good elasticity, easy installation and maintenance.
    2). Transverse, axial and angular displacements may occur during installation, which are not restricted by the pipeline not
    concentric and the flange not parallel.
    3). When working, it can reduce the transmission noise and strong vibration absorption ability.
    Advantage of PTFE lined rubber expansion joint:
    The PTFE lined rubber expansion joint has excellent chemical stability and corrosion resistance. It is one of the best corrosion
    resistant materials today. Except for molten metal sodium and liquid fluorine, it can resist all kinds of chemicals. It can not
    change when boiling in aqua regia. It is widely used in all kinds of acid-base and organic solvent resistant.
    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design
    Rubber expansion joint series products:
    single sphere rubber expansion joint, double ball rubber expansion joint, concentric diameter rubber expansion joint, reducer
    rubber expansion joint, food grade rubber expansion joint, threaded connection rubber expansion joint.
    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design
    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design
    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design
    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design
    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design
    Manufacturing Technique
    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design

    Why Choose Us

    Why choose the products of ZHICEHNG ?

    1.24 hours online service-- anytime, anywhere can provide what you want.

    2.100% quality
    inspection before shippment.

    3.Reasonable and competitive price.

    4.Strong production capability, strict quality control, offer satisfied service. Please click here to get more details.

    If you are interested in our products,pls click here to contact us now.

    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design
    Packing & Delivery
    Inner
    plastic film, then put into carton case
    Outer
    safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
    Lead time
    to be negotiated
    Shipping:
    Courier company transport, air freight and sea transport. It depends on your actual order details and quantity.
    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design
    With Limit Switch PTFE Rubber Expansion Joint For Corrosion Resistant Chemical Piping Flexible Design

    FAQ

    Q: Can you make the product as per client's requirement?
    A: Yes, we can make it with your exact requirement
    Q: What are your payment terms?
    A: T/T (30% as despot, the rest 70% will be paid before delivery), L/C at sight
    Q: Where is your nearest loading port?
    A: Shanghai, Qingdao or Tianjin, China.
    Q: How can you guarantee the quality or any warranty?
    A: Check the specification, material and appearance before delivery, and approve the delivery after qualified
    B: Support third-party inspection
    Q: Do you accept small quantity order?
    A: Of course we do.
    Q: Can we choose different material.
    A: Yes, the material can be chose according to your requirement.
    Q: what is your shipment and delivery time?
    A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
