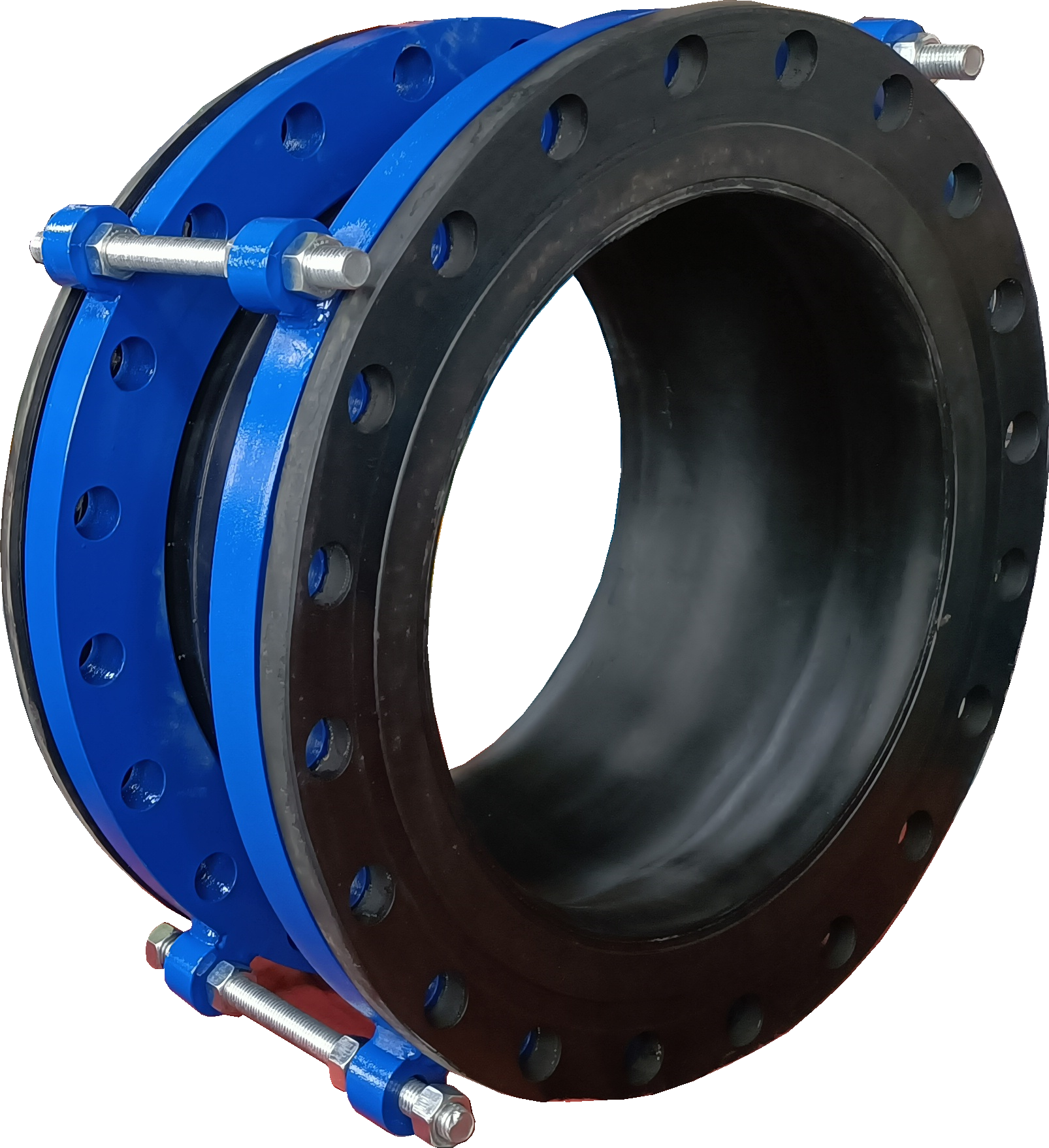

DN25-DN3000 Fully End-Sealed Flanged Bellows

Flexible EPDM Single Sphere Rubber Expansion Joint

Company Profile

Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Our mission: on product details, improve innovation, and meet user needs.
Our value: integrity and standardization, cooperation and win-win
Main products: rubber expansion joints, bellows expansion joints, metal hoses, double

flange disassembly joints, flange adapters ,fabric expansion joints, bellows

Specification

Material of rubber joint
No.	Name	Material
1	Outer/inner rubber	NR, NBR, EPDM, SBR, BR etc.
2	Size	DN25-DN3000
3	Frame	Nylon card fabric
3	Pressurized ring	Steel wire strand
5	Flange	Q235 carbon steel, 304 stainless steel etc.

-15℃ ~ +80 ℃ (-30℃~+150℃ special)
Applicable media	Air,compressed air,water,sea water,hot water,oil,acid and alkali etc

Main connecting dimension of rubber joint
Nominal diameter(DN)			Length	Axial displacement			Horizontal displacement	Deflexion angle
mm	inch	Extension(mm)	Compression(mm)	mm	mm	(a1+a2)°
32	1 and 1/4	95	6	9	9	15°
40	1 and 1/2	95	6	10	9	15°
50	2	105	7	10	10	15°
65	2 and 1/2	115	7	13	11	15°
80	3	135	8	15	12	15°
100	4	150	10	19	13	15°
125	5	165	12	19	13	15°
150	6	180	12	20	14	15°
200	8	210	16	25	22	15°
250	10	230	16	25	22	15°
300	12	245	16	25	22	15°
350	14	255	16	25	22	15°
400	16	255	16	25	22	15°
450	18	255	16	25	22	15°
500	20	255	16	25	22	15°
600	24	260	16	25	22	15°
700	28	260	16	25	22	15°
800	32	260	16	25	22	15°
900	36	260	16	25	22	15°
1000	40	260	18	26	24	15°
1200	48	260	18	26	24	15°
1400	56	350	20	28	26	15°
1600	64	350	25	35	30	10°
1800	72	350	25	35	30	10°
2000	80	420	25	35	30	10°
2200	88	420	25	35	30	10°
2400	96	420	25	35	30	10°
2600	104	450	25	35	30	10°
2800	112	450	25	35	30	10°
3000	120	500	25	35	30	10°

Product Description

Technical conditions of rubber joint
Type	1	2	3
Working pressure(Kg f/cm2)	1.0(10)	1.6(16)	2.5(25)
Explosion pressure(Kg f/cm2)	2.0(20)	3.0(30)	4.5(45)
Vacuum value(mmHg)	2.0(20)	86.7(650)	100(750)
Applicable temperature

Data above is only for reference, much more information, please click here to contact us .

For offering you a qucik quotation,pls tell us

1.Which kind of media do you want to flow through the rubber expansion joint, water , oil or anything else ?

2.What's the nomial diameter of rubber expansion joint ?

3.What's the type of rubber expansion joint, equal or reducing shape ?

4.What's the material of rubber and flange, EPDM and stainless steel ?

5.What's the standard of flange, ANSI, DIN or anything else ?
6.What's the nominal pressure,150lb or 300lb ?

7.What's the length of rubber sphere?8.How many pieces of rubber expansion joints do you need in total ?

Advantage of rubber expansion joint:

1.It excels in pressure resistance by the combination of spherical structure with super stability

against internal pressure and
strong special reinforcing .
2.Superior absorption of vibration-noise-shock
3.Compensate greater elongation, compression , lateral and angular movement

We also have other types of rubber expansion joint, if you need them, you can contact us
