    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    Ask Lasest Price
    Brand Name : ZHICHENG
    Model Number : ZCR
    Price : $12.20/sets 10-99 sets
    • Product Details
    • Company Profile

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    Chemical Anti-Corrosive Gas Compensator SS304 Metal Hose with PTFE Flange at 1200C

    Product Description

    Customized floating ss304 316 wire stainless steel flanged end connections braided flexible joint ptfe metal hose


    PTFE metal hose: acid, alkali and salt resistant, mainly used for pipeline anti-corrosion

    engineering.It can withstand various concentrations of acid and alkali.


    Product structure: bellows, mesh sleeve and joint/flange.


    Main body: the corrugated pipe is welded by thin-wall stainless steel and processed

    in waveform, with disturbance resistance and good temperature and pressure resistance.


    Mesh sleeve: (steel belt mesh sleeve or steel wire mesh sleeve) plays the role of strengthening

    the protection of bellows and is the "skeleton" of metal hose. One layer, two-layer or three-layer

    mesh sleeve can be selected according to different hose diameter and pressure.

    Technical parameter

    PTFE lined flexible metal hose:

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    Technical parameter of metal hose with flange
    Nominal diameter DN

    Inner diameter

    (mm)

    Outer diameterMinimum bending radiusWorking pressure
    BellowsBraid meshStaticDynamicSingle braid meshDouble braid mesh
    88.813.214.4501101520
    1011.716.517.76514518520
    1513.519.521.1801801820
    2020.02728.61202701015
    2527.034.536.11603606.310
    3232.04041.61754004.06.3
    4039.65253.62255104.06.3
    5049.76263.62806403.05.0
    6561.280.281.84109153.05.0
    8079.096.397.948610303.05.0
    100101.2119.6121.261013402.54.0
    125124.1145.3146.970015402.54.0
    150149.4180.8182.481017802.54.0
    200176.0240243.2100020002.54.0
    250248.0290294125025002.54.0
    300298.0350354150030001.62.5
    350347.0400404.8175035001.62.5
    400397.6460464.8200040001.62.5

    Datas above are only for reference,want best price?pls click here to contact us now .

    Character of metal flexible hose:
    1. good softness, anti-fatigue.

    2. high pressure resistant, high and low temperature resistant, corrosion resistant.

    3. the service life of metal hose is much higher.

    4. high comprehensive economical benefits.

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange


    Hot sell products

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    1.rubber expansion joint

    2.bellows expansion joint

    3.repair clamp

    Why choose the flanged connection metal hose from zhicheng ?

    1.24 hours online service-- anytime,anywhere can provide what you want.

    2.100% quality inspection before shippment.

    3.Reasonable price.

    4.Strong production capability ,strict quality control, offer satisfied service.

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    Product use

    Application of metal flexible hose:

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    Test of metal flexible hose:

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    If you are interested in our products, please click here to contact us on .com.

    Certifications

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

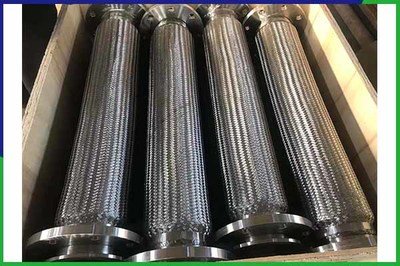

    Packaging & Shipping

    Inner: plastic film packing.

    Outer: export wooden cases or pallet.

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE FlangeChemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

    Company Information

    Henan Province Zhicheng Valve & Fittings Manufacturing Co., Ltd, established in 1985,

    is located in Xicun Town Pipeline Industrial Park, Gongyi City, China, covering an area of

    20,000 square meters. The production equipment is complete, with a monthly output of

    10,000 pieces.

    Main products: rubber expansion joints, bellows expansion joints, metal hoses,

    disassembly joints, flange adapters, bellows, etc.

    Our products are exported to more than 150 countries and regions overseas and we have

    established long-term cooperative relationships with our customers, mainly exporting to

    USA, Russia, Spain, Vietnam, Saudi Arabia, Egypt, Austria, Malaysia, Italy, Brazil, Thailand,

    Turkey, Singapore, etc.

    The company has passed the ISO9001:2008 quality management system certification and

    has a strict quality control system, standard production process and standardized delivery

    inspection program to ensure that the delivered products meet the technical requirements.

    Our mission: to provide high quality products to our global customers

    Our values: honesty and trustworthiness, win-win cooperation

    Quality engineering with Zhicheng, finished product delivery recognition Zhicheng, choose

    us, you will be 100% satisfied!

    Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange


    If you have some questions, please click here to contact us on .com.

    FAQ

    Q: Do you have products catalog?

    A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.

    Q: Can you provide drawings and technical data?
    A: Yes, our professional technical department will design and provide drawings and technical data.

    Q: Do you provide samples? Is it free or charged?
    A: Yes, we can offer sample free but shipping charges covered by customer.

    Q: How long is your delivery time?
    A: Depends on QTY, but normally no more than 30 working days.

    Q: Can the products be manufactuered by customer's requirement?
    A: Yes, the specifications stated above are the standard ones, we can design and manufacture as

    requirement.
